MPS55喷浆泵

喷浆机技术参数 Shotcrete machine technical parameters

项目 Item	单位 Unit	参数 Parameter
型号 Model	—	MPS55	N2	N5
电机 Pumping motor	KW	5.5+2.2KW-380V	4KW-380V	7.5KW-380V
最大颗粒 Allowed max. Aggregate diameter	mm	3	3	3
理论排量 Material theoretical output	I/ min	40	30	22
输送压力 Conveying pressure	Bar	40	30	25
上料高度 Feeding height	cm	56	125	25
搅拌机容积 Mixer capacity	L	120		110
尺寸 Dimension	mm	2300X800X1300	1620X480X1020	1200X720X1600
重量 Weight	kg	380	165	265

整机概况 Whole machine profile

喷浆机系列产品是我公司结合我国建筑和建材的特点，在德国先进技术的基础上研制改进的一种新型节能、环保的建筑机械设备。这种新型机械完全适合我国的各类建筑喷浆施工。
我公司通过完美的设计、配合卓越的工业技术才制造出这种性能可靠、适应性强、坚固耐用、操作简单的喷浆机组，受到各级建筑行业人士的称赞和表扬，也受到有关领导的大力支持和推广。
结合当前市场出现的网架结构隔声，保温体系的CS板、SB板、聚苯乙稀板(EPS)、聚苯颗粒板等等，这些网板上的砂浆墙面机器操作容易、硬度高、粘合度好，无空鼓、开裂等现象；而人工操作网架结构的砂浆墙面难度高、硬度低、粘合度不够，容易出现空鼓、开裂等。
PJB series are a new type of energy-saving and environmentally-friendly construction machinery developed by our company and enhanced on the basis of Germany advanced technologies. It's completely applicable to all types of spraying constructions.This set of spraying assembly, blending pedect design with excellent industrial technologies, is reliable, adaptable, strong and durable, and easy to operate. Therefore, it has been praised and recognized by insiders at all levels and strongly seconded and generalized by relevant leaders.
Assorted with the current sound-and-thermal insulation system of the space truss structure like CS board,SB board,EPS board, and polyphenyl particle board, the mortar wall sudace machine of these halftones is featured by easy use,high hardness, good adhesion, and no hollowness and cracks, distinct from the shortcomings of high difficulty, low hardness, insufficient adhesive, and likely hollowness and cracks of that of the manually-operated space truss structure.

技术特点 Technical features

适用：喷涂抹灰轻质干粉材料，例如：石膏基，水泥基、石灰基及保温砂浆材料等，同时也可适用于自流平机械化泵送施工。
特点：全自动预混搅拌、水计量、喷涂功能于一体。
高端配置：德国隔膜式空压机，西门子电器；喷射式水泵，意大利水流量控制系统；德国螺杆泵(D6-3)，意大利灰浆管(25mm-15m); 韩国空气管(10mm-16m) , 喷枪远控等。
Application, Be used to spray ash light dry mortar material, such as gypsum-based, cement-based, lime-based and insulation mortar materials, etc. can also be used for self-leveling mechanized pumping construction.
Feature, Automatic premixed mixing, water metering, spray function in one
High configuration, German diaphragm air compressor, Siemens. Jet pump, Italian water flow control system. German screw pump(D6-3), Italy mortar pipe(25mm-15m). Korea air pipe(10mm-16m), spray gun remote control.

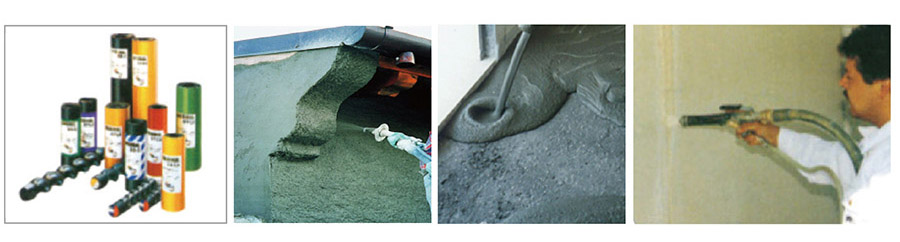

施工案例 Construction case
