搅拌拖泵JBT40和DJBT40

搅拌拖泵技术参数 Drag the mixing pump technical parameters

项目 ltem	单位 Unit	JBT40	DJBT40
最大理论混凝土搅拌量 The maximum theoretical concrete mixing volume	m³/h	20	20
最大理论混凝土输送量 The theoretical maximum output	m³/h	40	40
混凝土输送压力 Concrete delivery pressure	MPa	11	11
混凝土缸规格/行程 Concrete cylinder specifications/ stroke	mm	φ180×700	φ180×700
出料口直径 Discharging outlet diameter	mm	150	150
料斗容积/上料高度 Hopper capacity / Pumping height	Lxmm	600×1070	600×1070
油箱容积 Oil volume	L	200	200
允许最大骨料粒径 The maximum aggregate size	mm	卵石: 50碎石: 40	卵石: 50碎石: 40
液压油路形式 Hydraulic oil circuit form	mm	电控换向开式回路	电控换向开式回路
分配阀形式 Distributing va lve form		S管阀	S管阀
额定转速 Rated speed	rpm	1480	1480
泵送电机(柴油机) 功率 The electrical power	KW	45	56
提升电机功率 Boost motor power	KW	4.5
外形尺寸 Overall dimension	mm	4900×2050×2600	4900×2050×2600
整机重量 Total mass	kg	4800	5200

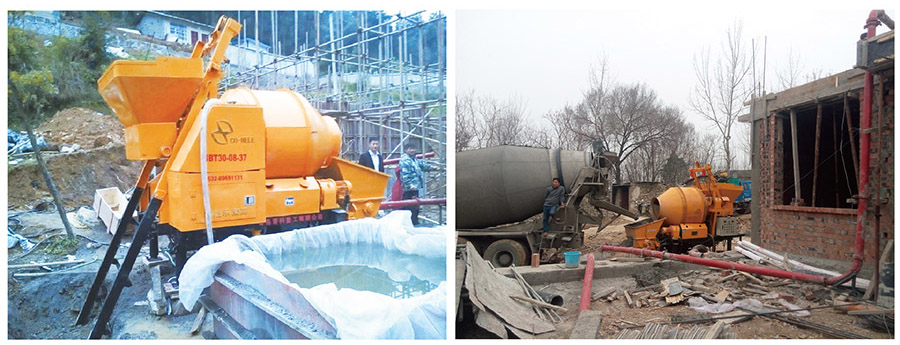

整机概况 Whole machine profile

用机械化代替人工已成为了这些承包商的大多选择。一台小型的铲车加上一台搅拌拖泵，即可代替五六人的工作量，而且工作效率也提高了数倍。利用铲车将砂子、石子、水泥等材料送入搅拌拖泵，用遥控操作搅拌拖泵料斗上料，之后搅拌拖泵即可自行完成搅拌、泵送到楼面等工作，整个操作相当简单，基本解放了劳动力。并且，搅拌拖泵还具有体积小、拖运方便、能耗小等特点，非常适合农村小型民建的使用。

With mechanization replace artificial has become the most choices of these contractors. A small forklift truck with a mixing pump, can instead of the five or six people work, but also improve the work efficiency many times. Using a forklift to sand and gravel, cement and other materials into mixing pump, operated by remote control mixing hopper feeding pump, and pump itself after mixing, pump to the floor, etc, the whole operation is fairly simple, basic liberated labour,Moreover the mixing pump has small volume, convenient transferring, low energy consumption, etc, very suitable for the use of rural small committee.

技术特点 Technical features

◆ 一体化设计，使设备占用空间小，移动灵活方便；
◆ 集搅拌和泵送于一体，使用户更方便地进行高效率施工；
◆ 配置高性能稳定。全自动化操作，经久耐用易维护，寿命长；
◆ 施工时，不会对楼板的钢筋结构造成影响，浇筑的楼板质量更优秀；
◆ 适用于各种民建房，公路，农田水利等工程建设。
◆ Integrated design, make the equipment to take up a little space move flexible and convenient.
◆ Integrating mixing and pumping, make the user more easily to use for efficient construction.
◆ Configuration of high performance stability. Full automatic operation, durable easy maintenance, long service life.
◆ When on construction, it will not affect floor reinforcement structure, the quality of casting slab is better.

◆ Suitable for all kinds of people to build, highway, water conservancy project construction, etc.
