轻质土发泡设备

轻质土 (发泡混凝土)制备设备技术参数
Light soil (foam concrete) preparation equipment technical parameters

项目 Item	单位 Unit	参数 Parameter
发泡水泥输送量 Foam cement delivery	m³/h	100
主电机功率 Main motor power	kw	15
空压机电机功率 Air compressor motor power	kw	7.5
搅拌仓电机功率 Mixing tank motor power	kw	5.5
搅拌仓上料高度 Mixing tank height	mm	1100
三次搅拌仓容积 Three mixing tank volume	m³	2
主机外型尺寸 Host size	mm	4600×2500×2200
主机重量 Host weight	kg	3400
最大输送距离 Maximum conveying distance	m	水平500 垂直100

整机概况Whole machine profile

泡沫混凝土填充专用生产设备CSP100是集发泡系统、计量系统、混合系统、泵送系统、操作系统于一体的大方量轻质土生产设备，
我公司针对泡沫混凝土填充工程量量大，要求设备施工速度快，施工效率高，性能稳定的施工需求，精心设计而成的发泡水泥填充专用
备。本设备成功攻克传统发泡水泥机运用于填充工程，施工速度慢等技术难题，使施工更加方便快捷，操作更加
单，产品质量更加标准
oam concrete filling production equipment CSP100 is a foam system, metering systems, hybrid systems, pumping systems, operating systems in one of the large amount of light soil production prepared, is my company for the large mount of foam concrete filling project, requiring equipment construction speed, high construction efficiency, stable
erformance of the construction needs, carefully designed from the foam cement filled with special equipment. The quipment successfully overcome the traditional foa m cement machine used in filling the project, the construction of low technical problems, so that the construction more convenient and more efficient operation simple, more standard roduct quality.

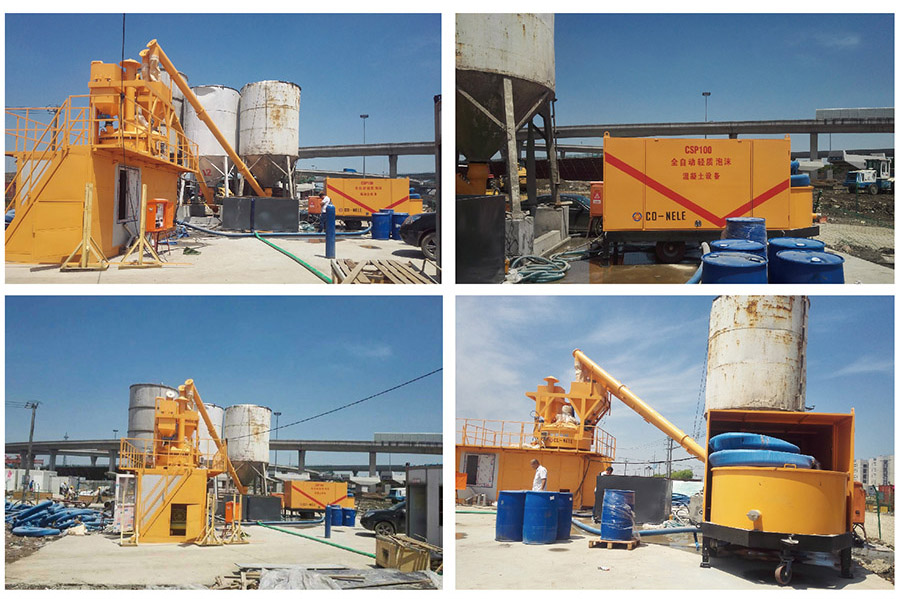

施工案例Construction case
